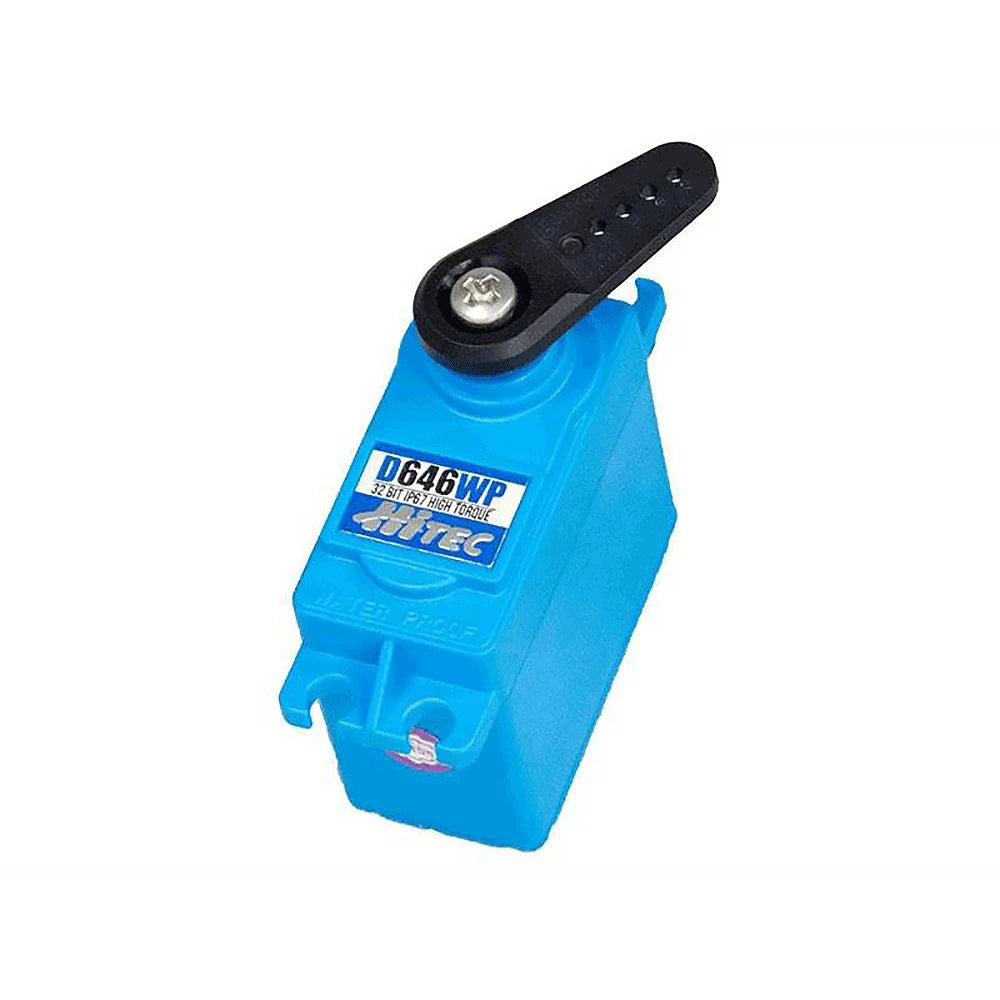

D646WP Waterproof Metal Gear 25T Digital Sport Servo

$64.99

In stock

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!

Shop with peace of mind knowing secure payment portal

See more by Electronics

D646WP Waterproof Metal Gear 25T Digital Sport Servo

$64.99

Product Description

IP67-Rated Waterproof Case
Dual Ball Bearing-Supported Output Shaft
7.4v 2-Cell LiPo Capability

Programmable Functions

End Point Adjustments
Direction
Fail Safe

Performance Specifications

Operating Voltage Range (Volts DC) - 3.5 ~ 8.4V

Speed (Second @ 60°) - 0.16 @ 7.4V

Maximum Torque Range oz. / in. - 161.09 @ 7.4V

Maximum Torque Range kg. / cm. - 11.6 @ 7.4V

Current Draw at Idle - 30 mA @ 7.4V

No Load Operating Current Draw - 330 mA @ 7.4V

Stall Current Draw - 2,200 mA @ 7.4V

Dead Band Width - 2 µs

Physical Specifications

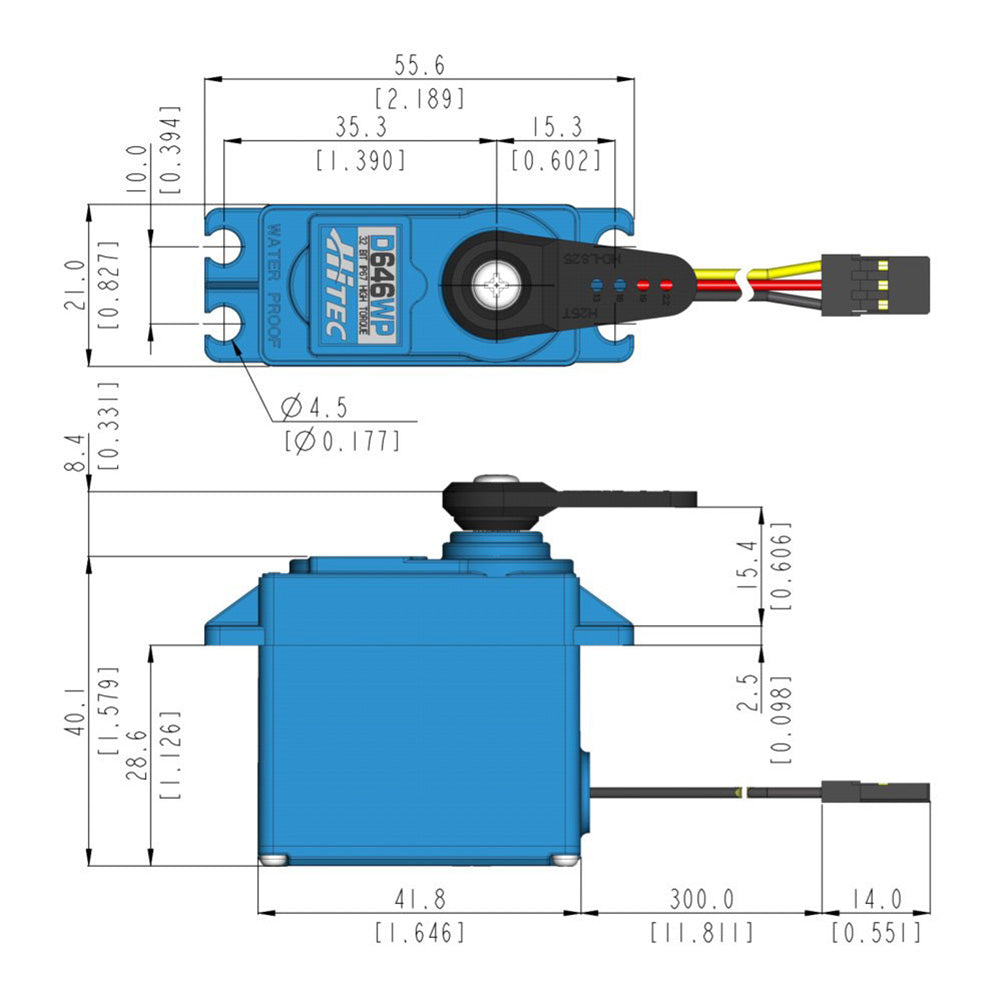

Dimensions (Inches) - 1.65 x 0.83 x 1.58

Dimensions (Metric) - 41.8 x 21.0 x 40.0

Weight (Ounces) - 2.15

Weight (Gram) - 61.0

Circuit Type - G1 Programable Digital

Motor Type - Cored Carbon Brush

Gear Material - Metal

Bearing Type - Dual Ball Bearing

Output Shaft (type / Ømm) - Standard 25

Case Material - Engineering Plastic

Dust / Water Resistance - IP 67

Connector Gauge (AWG) / Strand Count - 22 / 60
