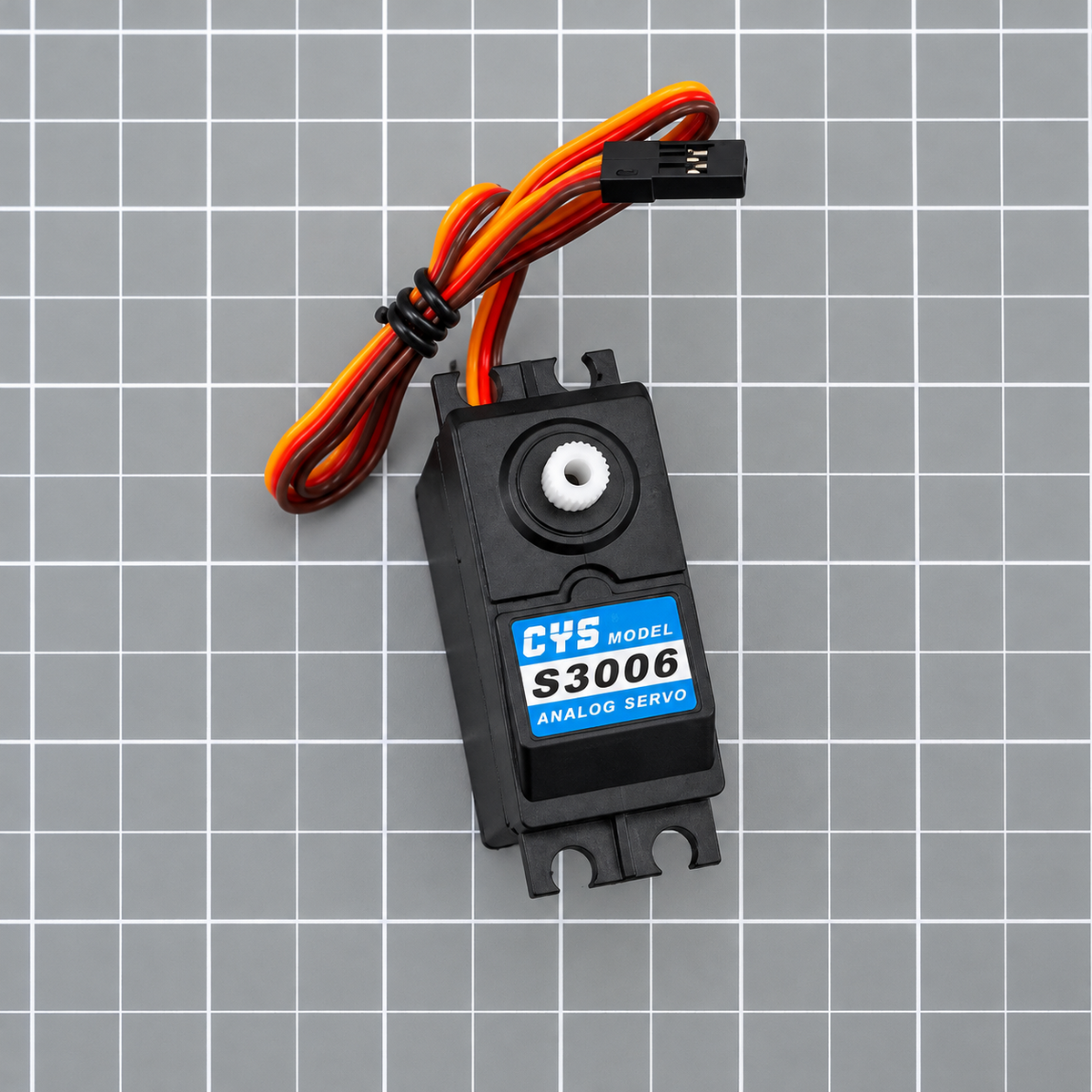

CYS-3006 -Analog Servo (RC Laser Rudder Servo)
$26.00
2600
Duties and taxes included.
In stock
See more by
Electronics
CYS-3006 -Analog Servo (RC Laser Rudder Servo)
$26.00
2600
$26.00
2600
Product Description
The CYS S3006 6kg Plastic Gear Analog Servo used for RC Laser Rudder Servo
Plastic gear Analog Servo
Size: 40.8*20.1*38mm
Weight: 40g (1.41 oz)
Control System: (+)Pulse Width Control 1500usec Neutral
Operating Voltage: 6.0~7.4V
Operating Temperature Range: -10 ~ +50 Celsius degree
No-load Speed:
0.14sec/60 degree -(6.0V)
Stall Torque:
5.5kg.cm (76.40 oz/in) -(6.0V)
Operating Angle: 45deg.one side pulse traveling 500 usec
Direction: Anticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V): 20mA/idle and 200mA no load operating
Stall Current: 1.5A/1.8A
Dead Band Width: 4usec
Motor Type: Iron Motor
Bearing Type: Dual Ball Bearing *2
Horn gear spline: 25T
Gear Type: Plastic
Connector Wire Length: 300 ±5mm
Connector Type: JR plug
Size: 40.8*20.1*38mm
Weight: 40g (1.41 oz)
Control System: (+)Pulse Width Control 1500usec Neutral
Operating Voltage: 6.0~7.4V
Operating Temperature Range: -10 ~ +50 Celsius degree
No-load Speed:
0.14sec/60 degree -(6.0V)
Stall Torque:
5.5kg.cm (76.40 oz/in) -(6.0V)
Operating Angle: 45deg.one side pulse traveling 500 usec
Direction: Anticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V): 20mA/idle and 200mA no load operating
Stall Current: 1.5A/1.8A
Dead Band Width: 4usec
Motor Type: Iron Motor
Bearing Type: Dual Ball Bearing *2
Horn gear spline: 25T
Gear Type: Plastic
Connector Wire Length: 300 ±5mm
Connector Type: JR plug
